EuroSound XS Series
Elegant Transparency, Functional Design

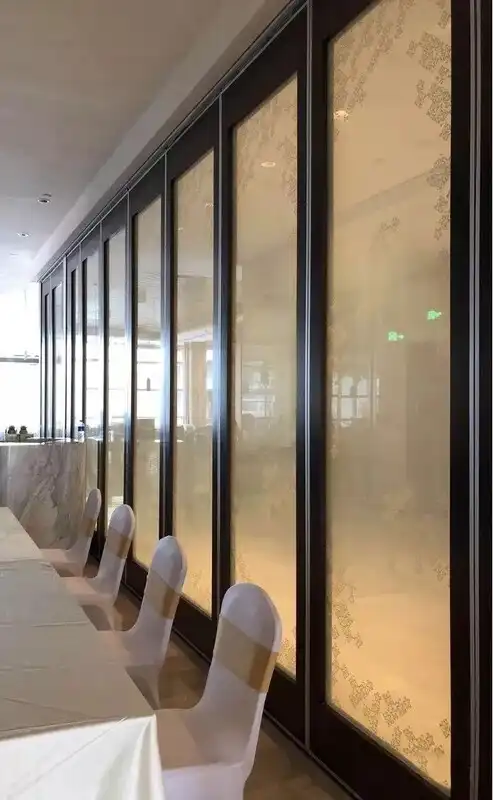

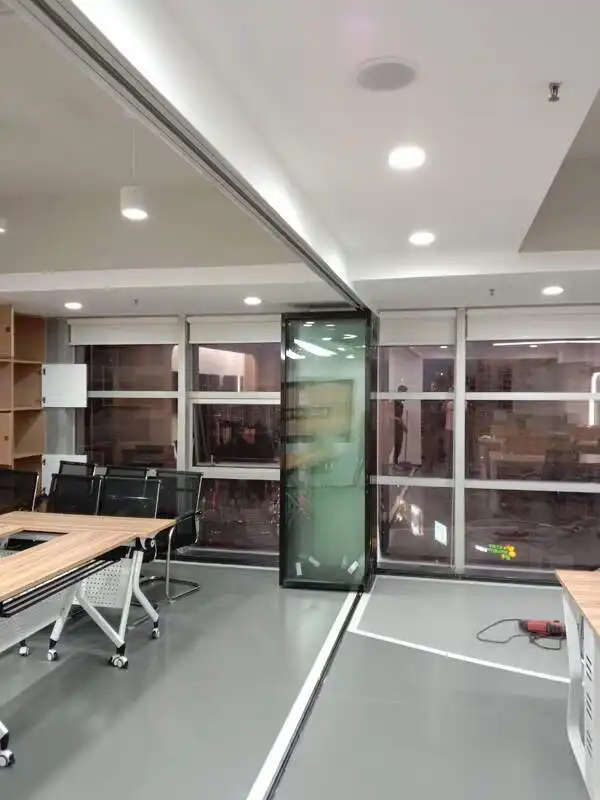

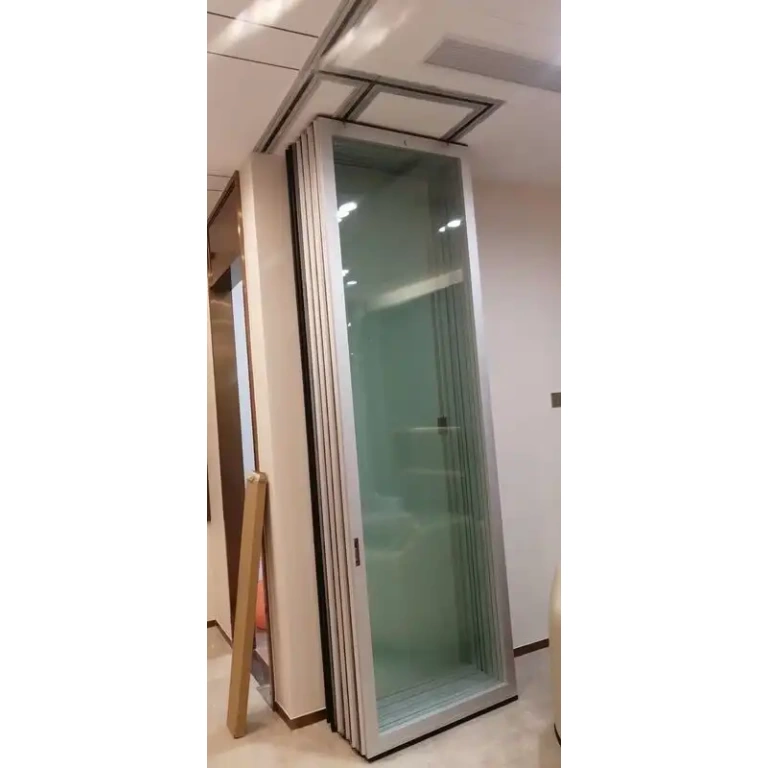

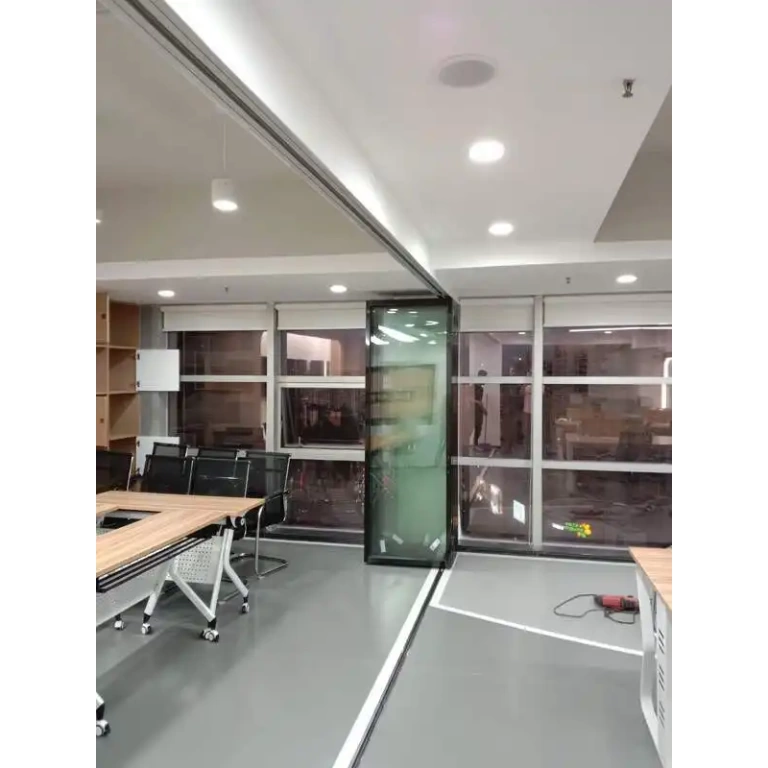

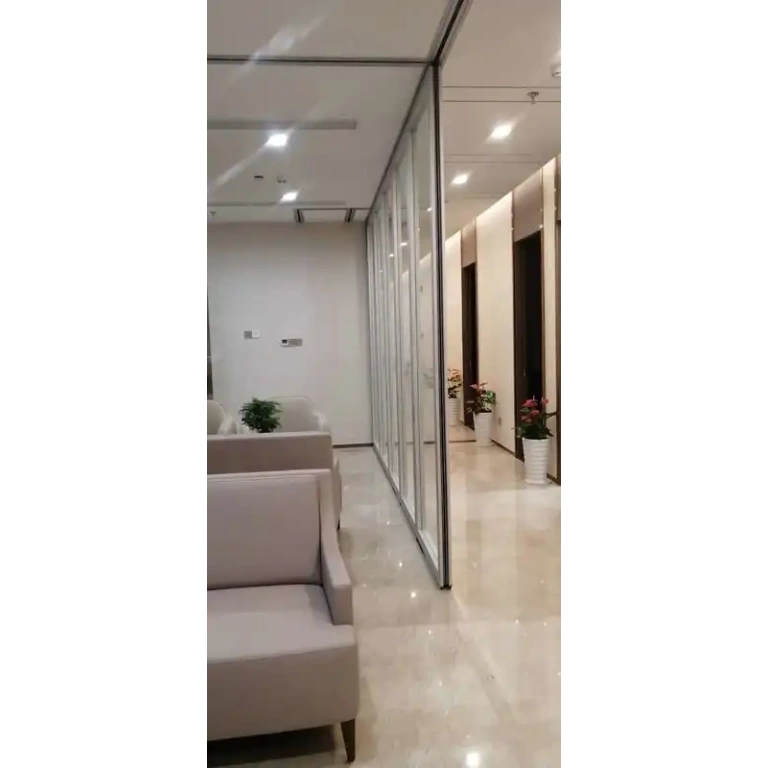

Unveiling the EuroSound XS Series Single Glaze Glass Panel, a fusion of transparency and functionality. Meticulously designed with a lightweight aluminium frame structure, the 60mm thick panels made from 10mm tempered glass cater to walls up to 4 meters. The aluminium frame offers a touch of personalization through powder coating in an array of color options, adding a stylish touch to any space.
EuroSound XS Series
- 60mm thick panels made of 10mm tempered glass with a lightweight aluminum frame structure
- Suitable for walls up to 4 meters.
- The aluminum frame allows for personalization with a variety of color options through powder coating, adding a stylish touch.
Suitable For

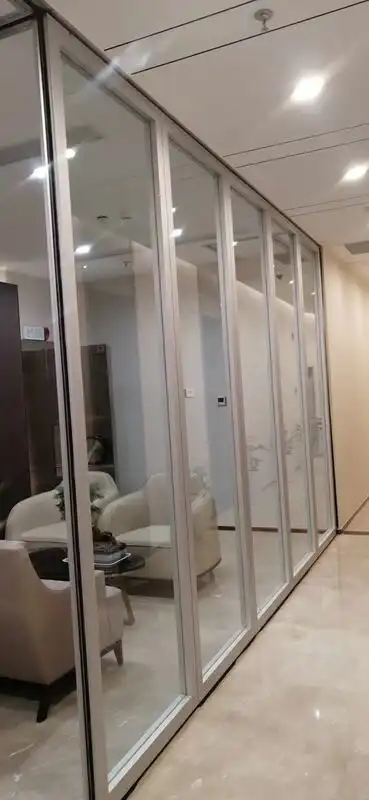

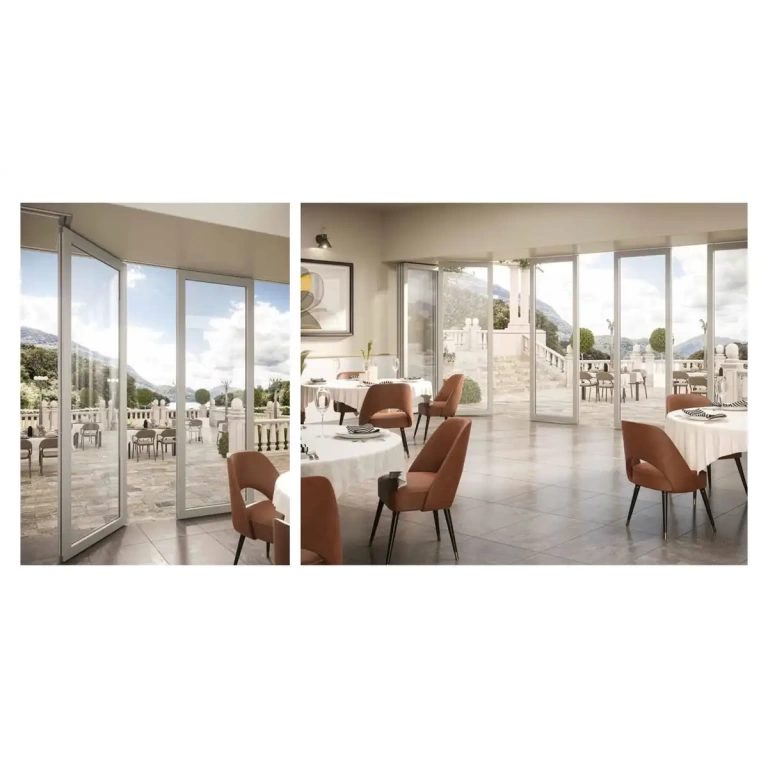

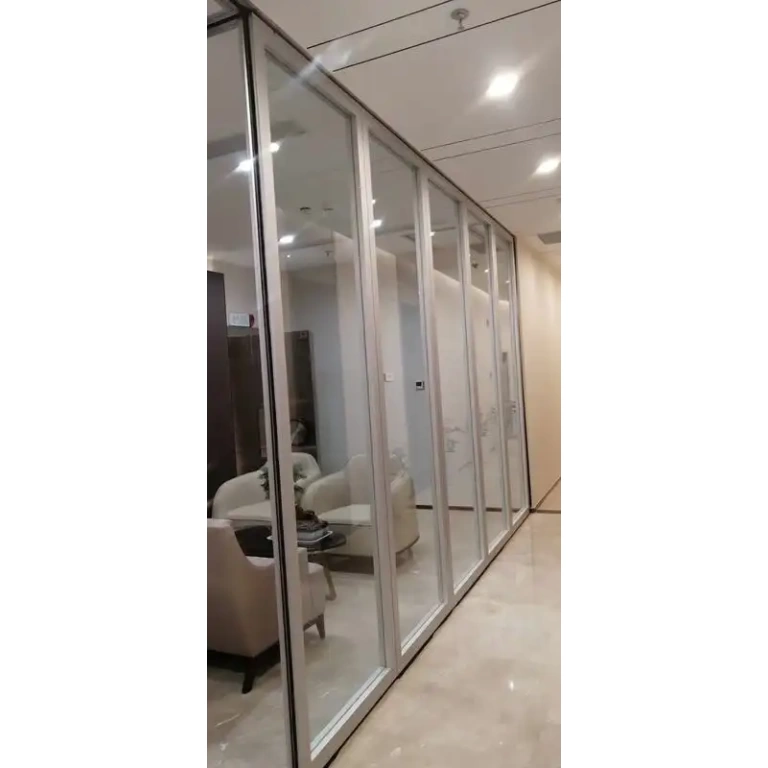

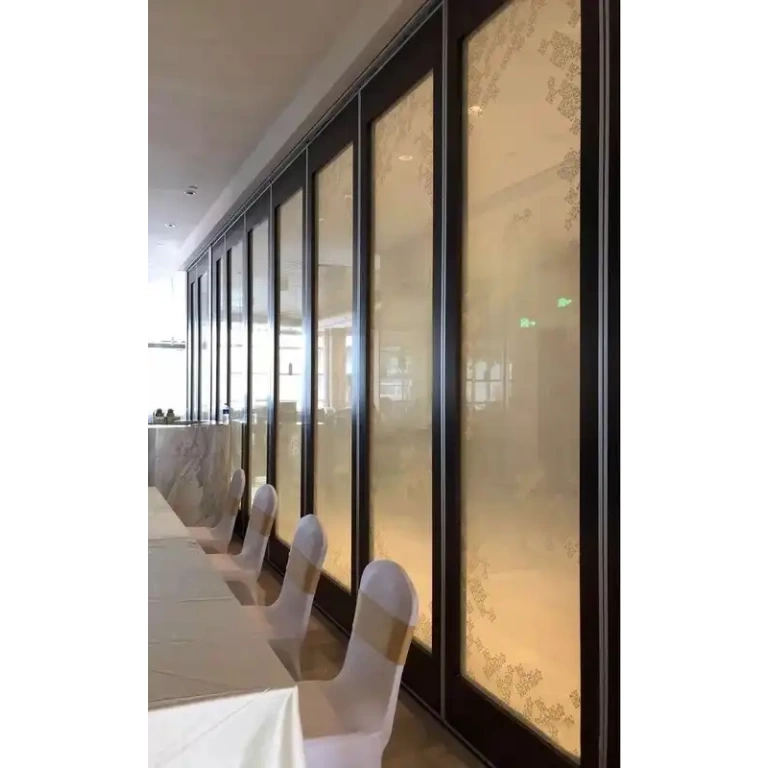

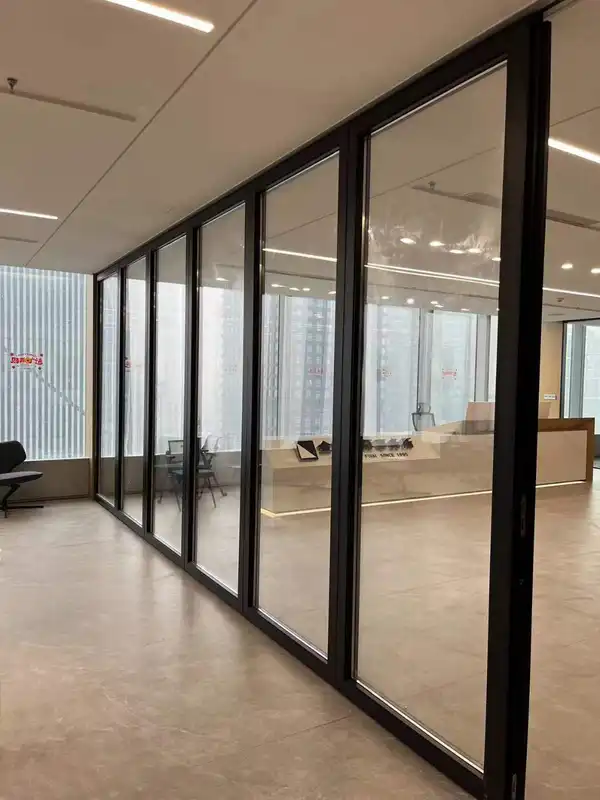

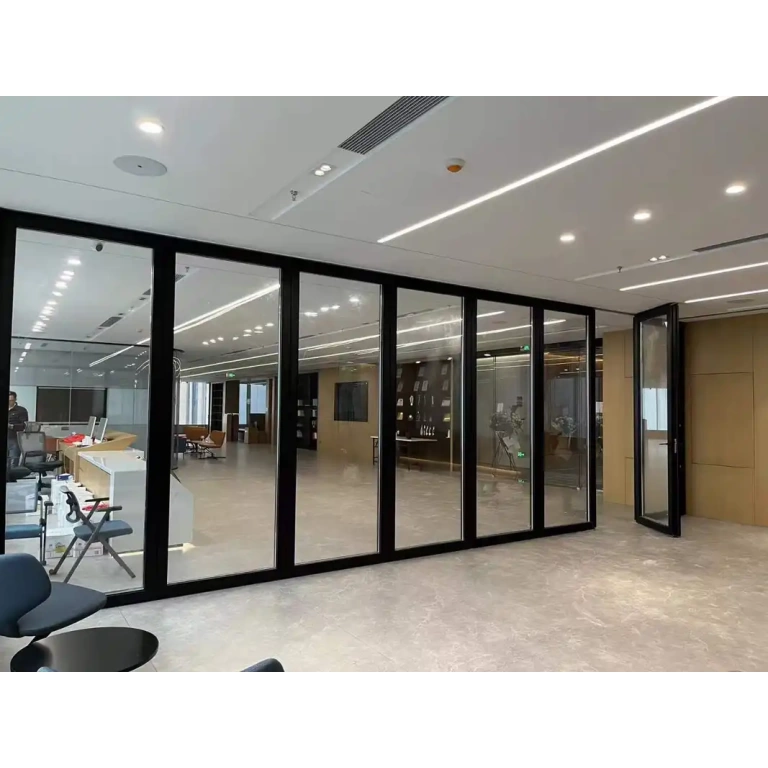

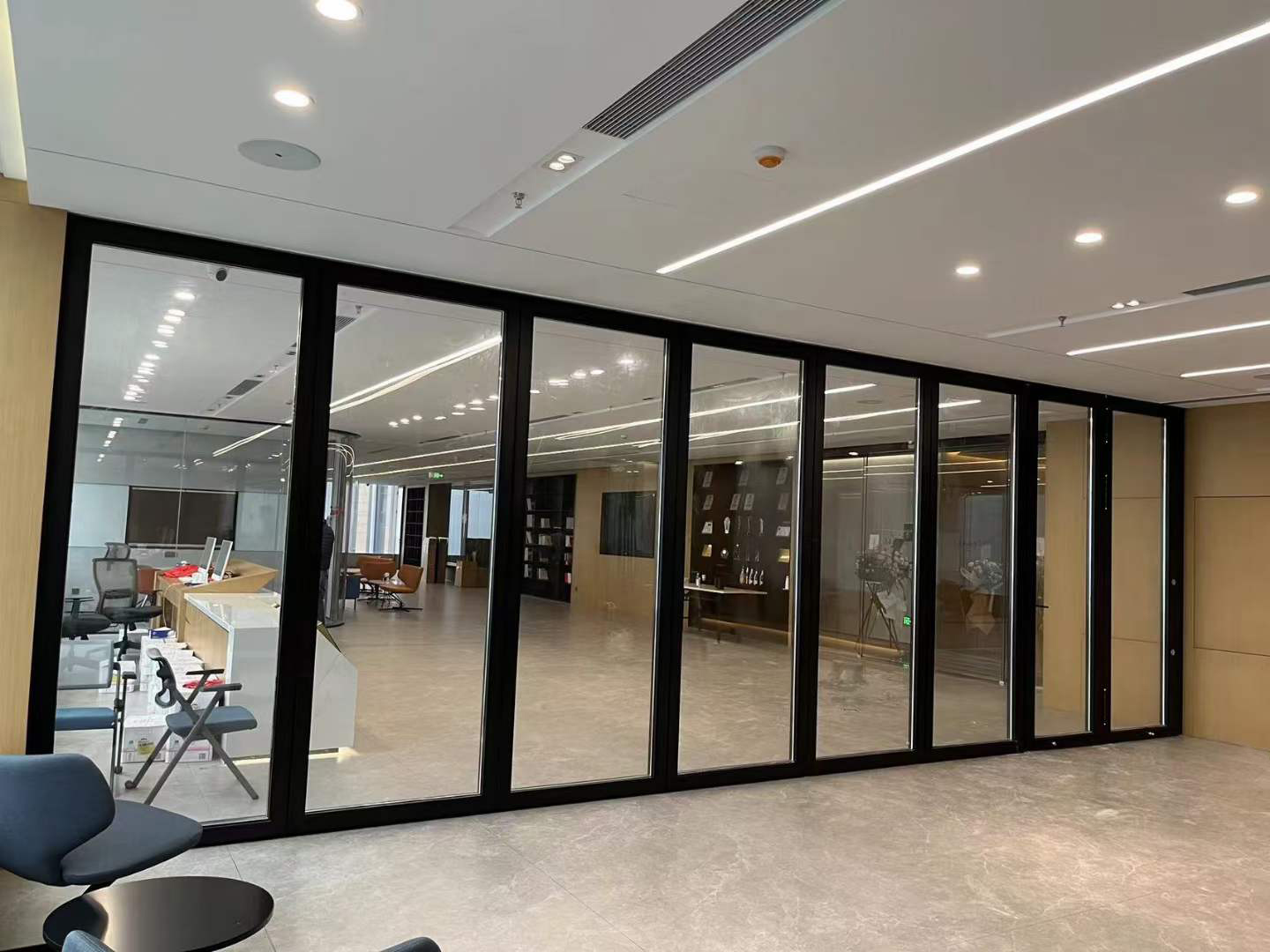

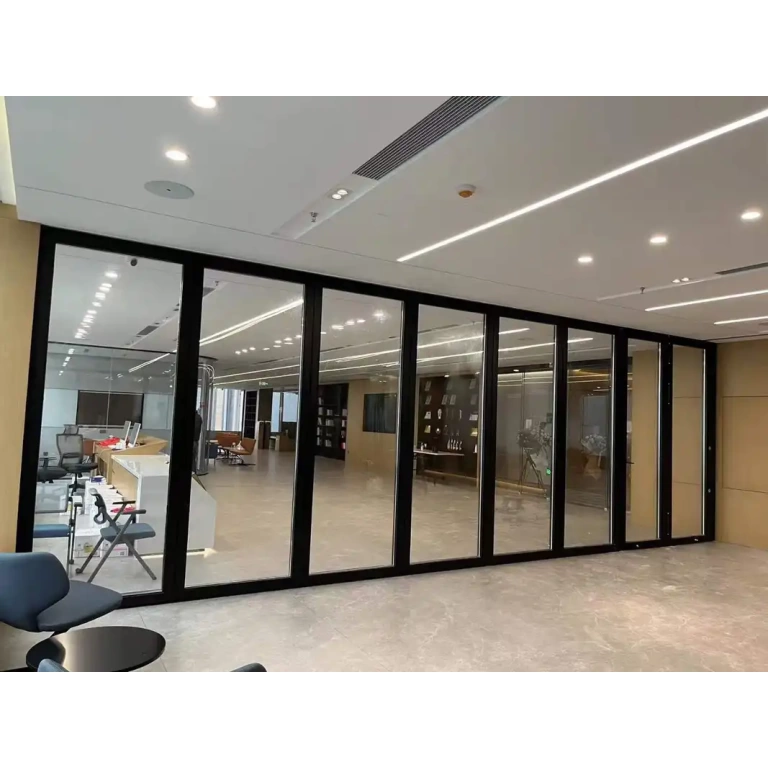

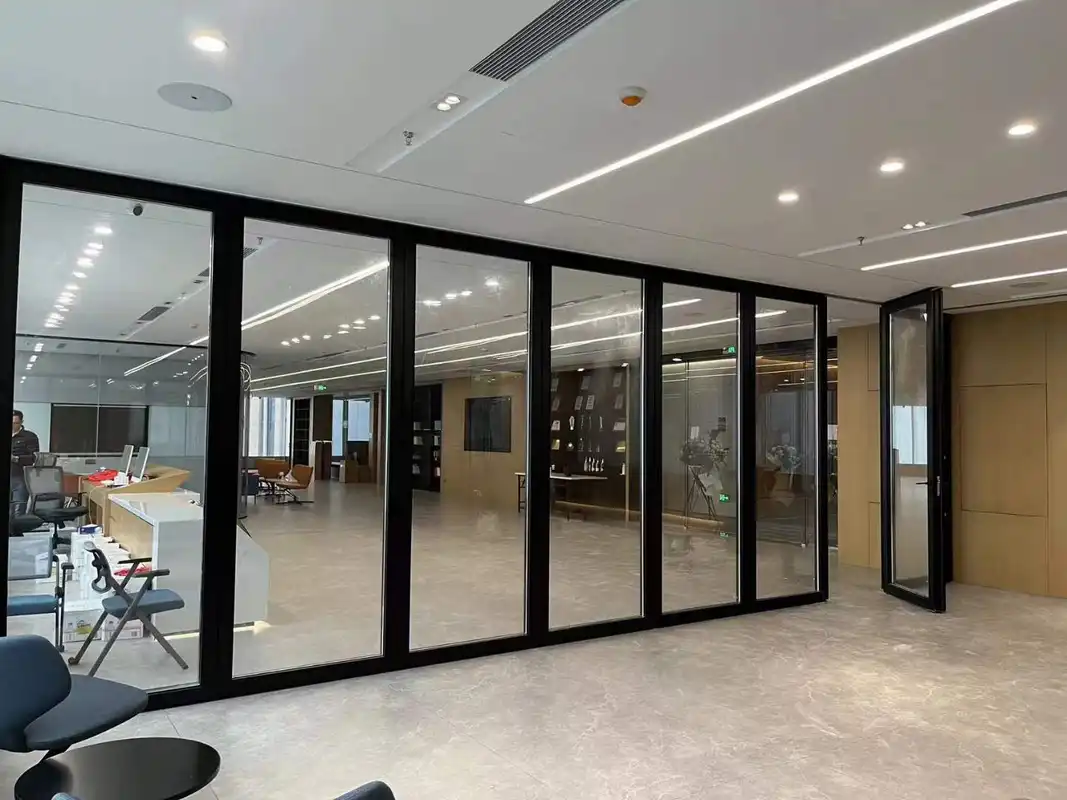

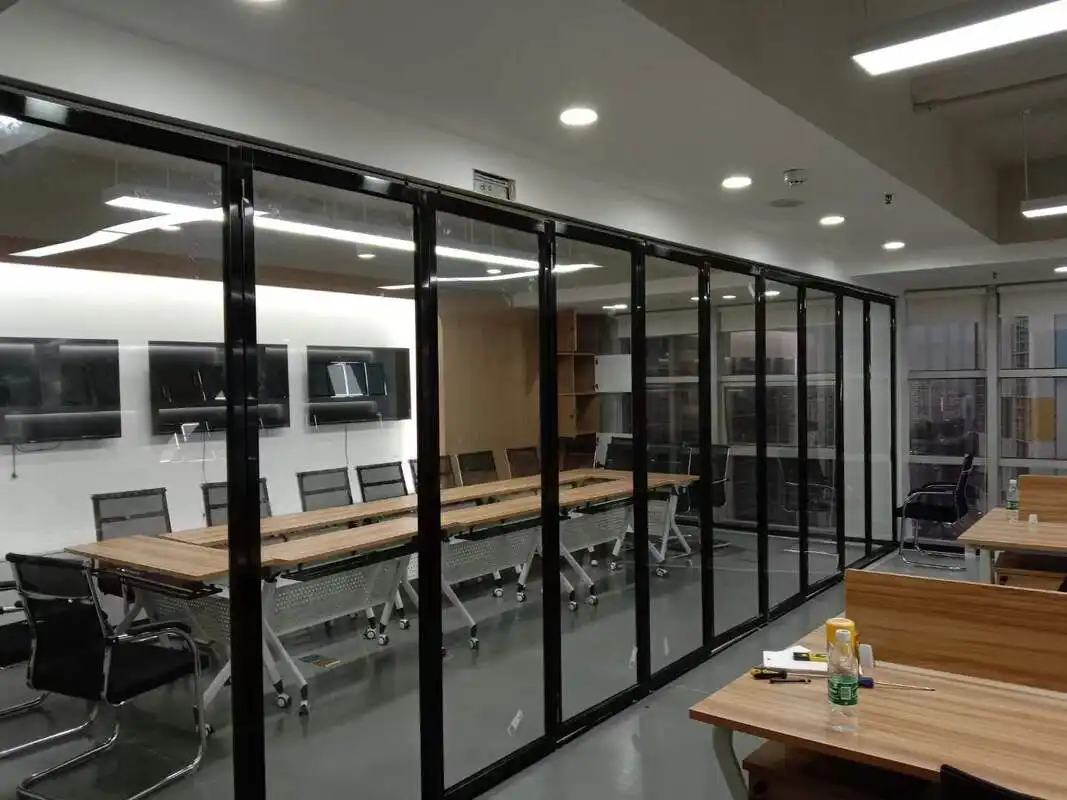

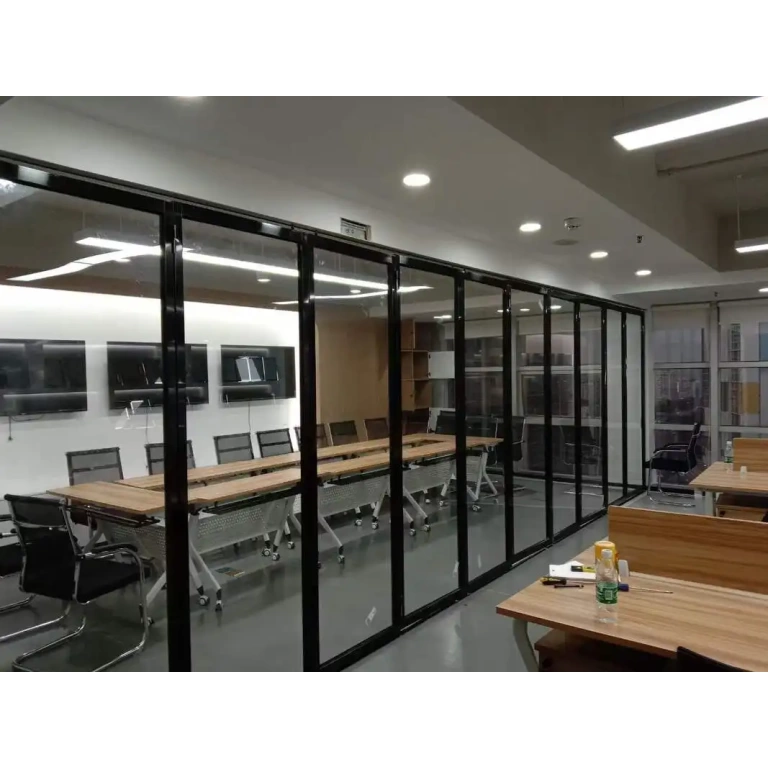

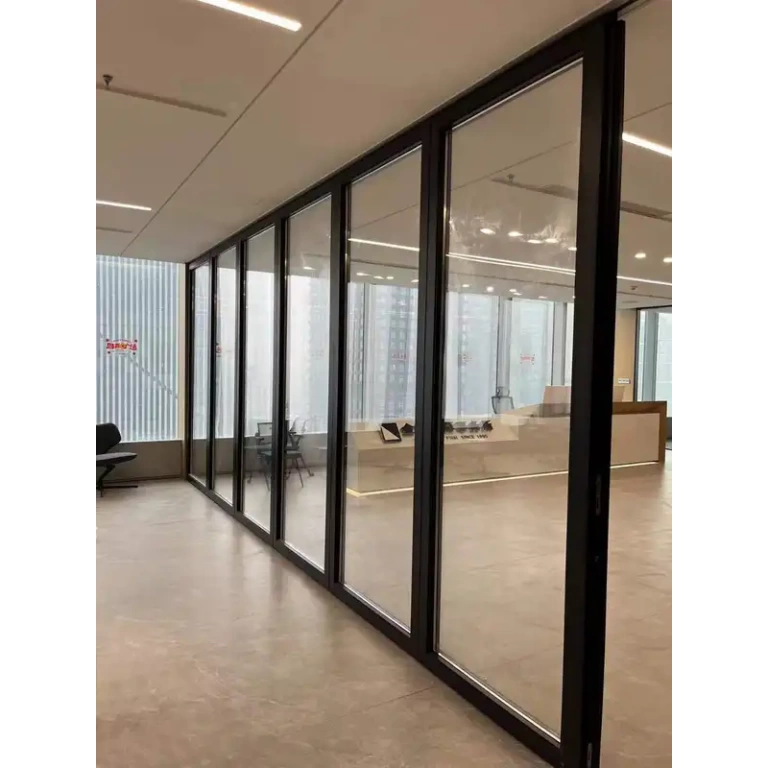

Spaces that require a fusion of transparency and functionality, such as offices, meeting rooms, and commercial areas.
Specifications
With 60mm thick panels crafted from 10mm tempered glass, this system caters to walls up to 4 meters in height. Additionally, the aluminium frame offers customization through powder coating in various colour options.
Thickness: 60mm thick panels, 10mm tempered glass
Height: up to 4 meters
| Specification | Details |
|---|---|
| XS Track : | Anodised Aluminium 6063-T5; Top Hung System; maximum load 250kg per panel. |
| XS Roller : | Single Roller or Double Rollers; Material Polyoxymethylene (POM) with Stainless Steel 304 body and bearing 6304-2RS. |
| XS Seal : | Material Polyvinyl Chloride; Grey Colour |
| XS STC/DB : | 30 |
| XS Panel : | Thickness 60mm, Aluminium Frame with Interlocking joint , Single Glazed 10mm Tempered Glass |
| XS Acoustic Seal : | 25mm Top and Bottom |
| Operation Mechanism : | Manual Bolt System or Manual Half Crank System Floor : 12mm Socket per panel |
