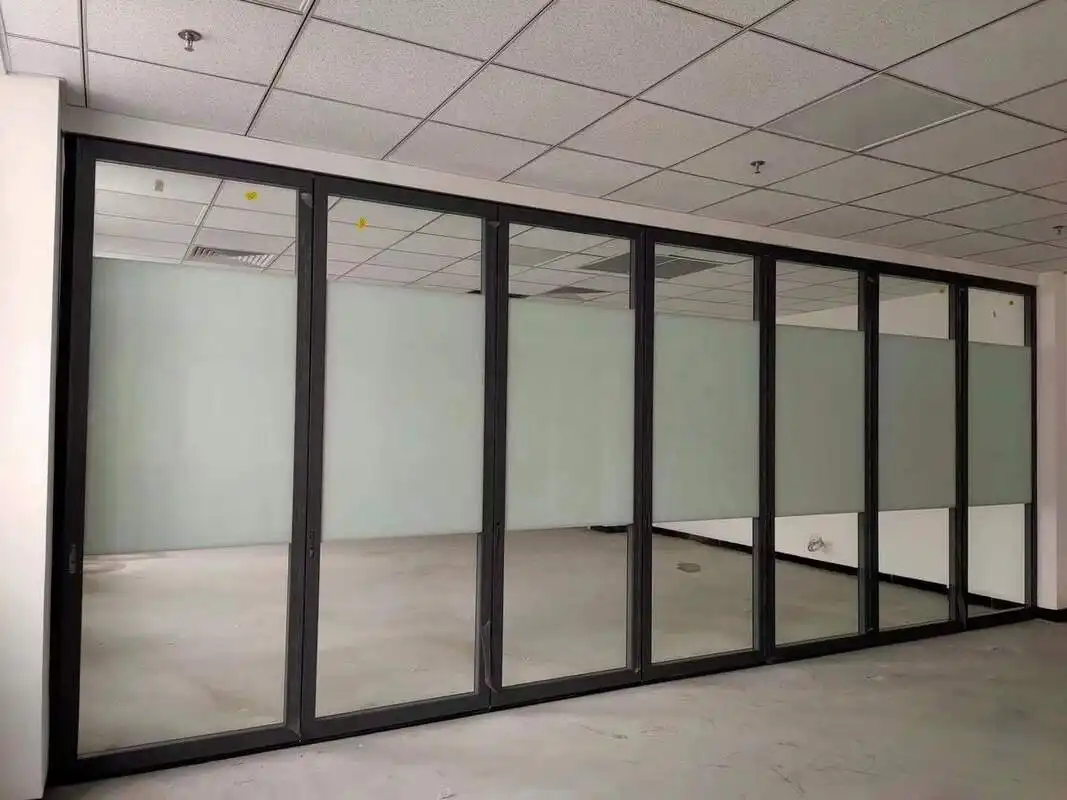

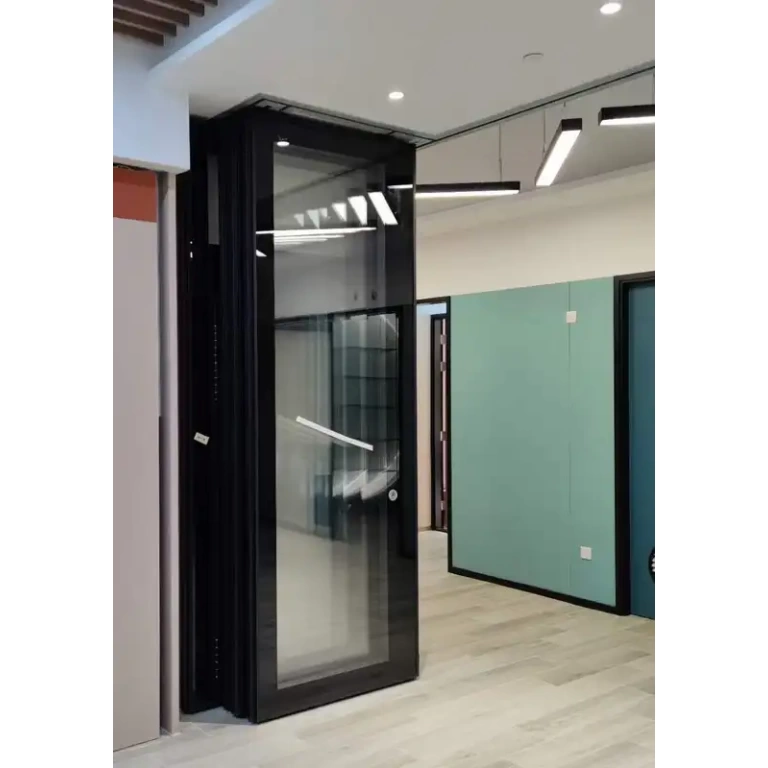

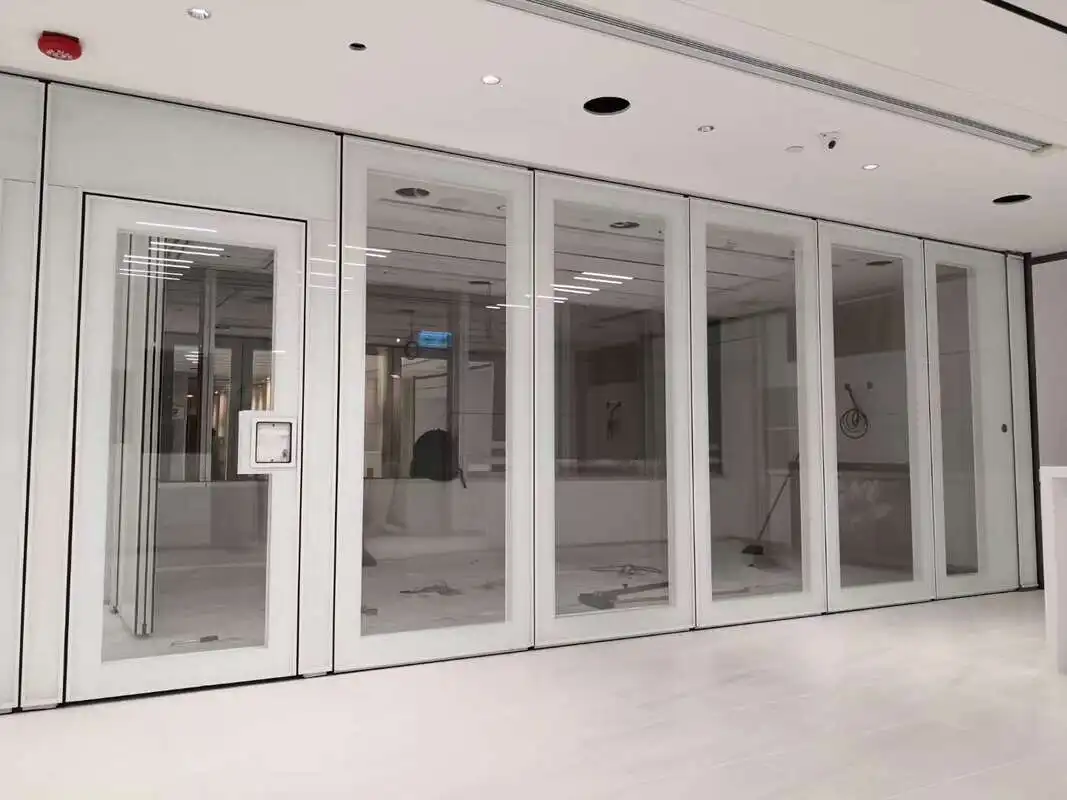

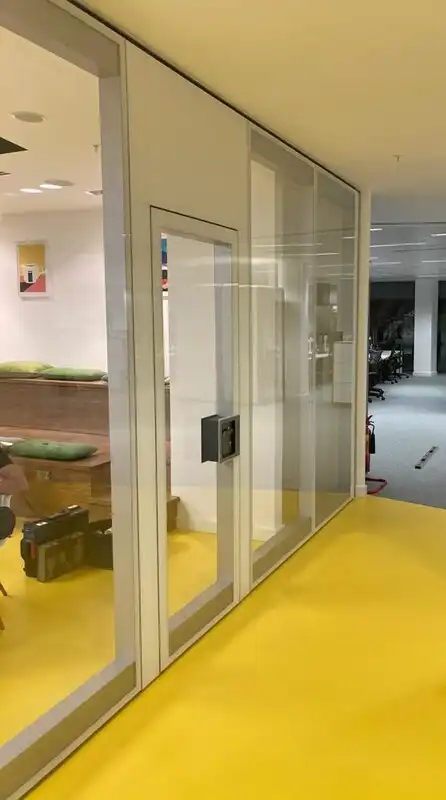

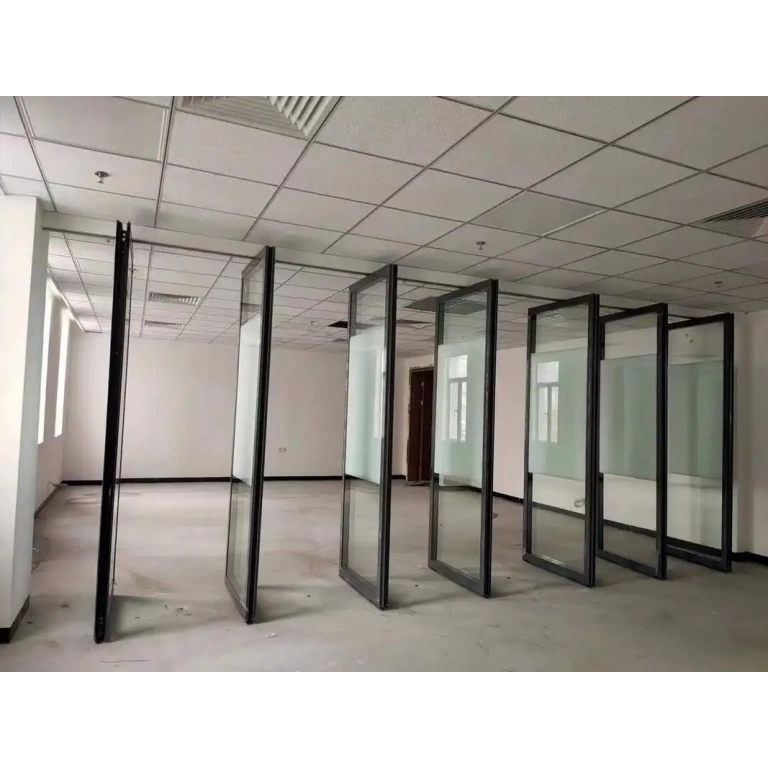

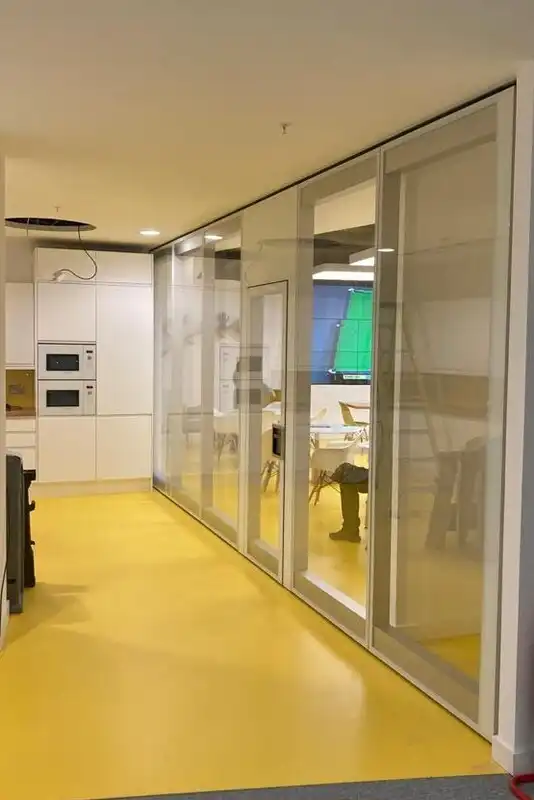

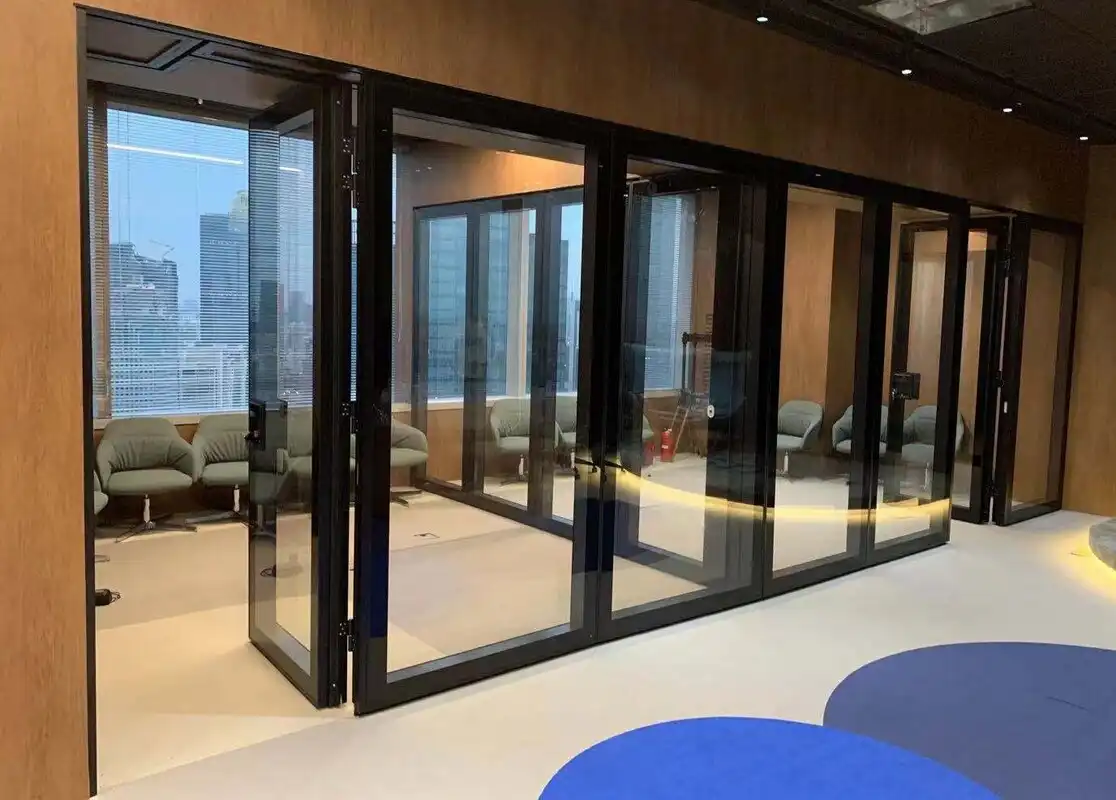

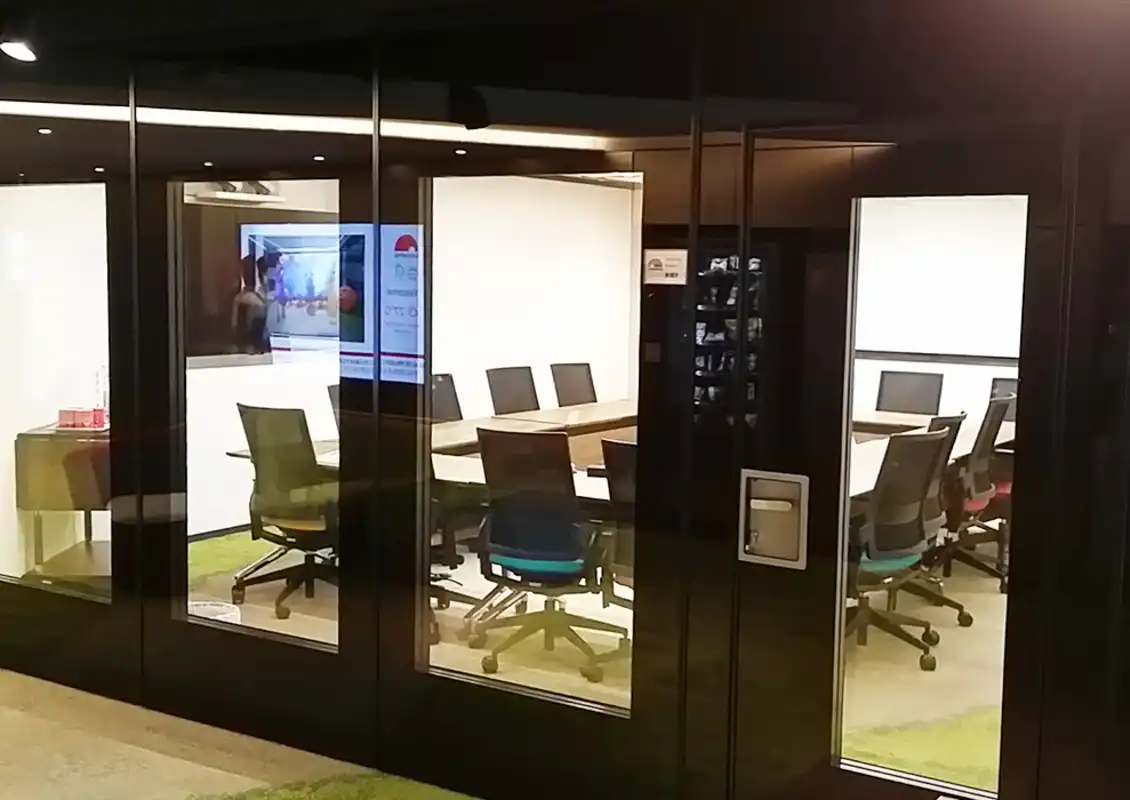

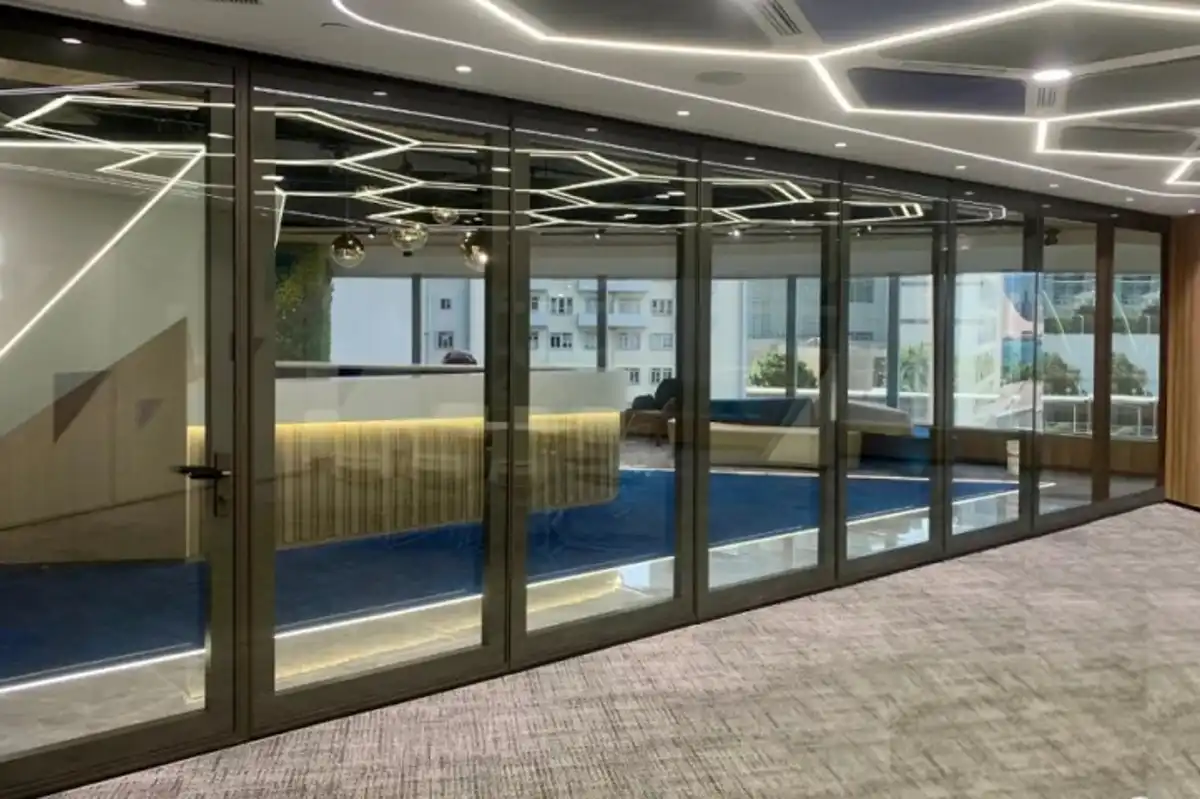

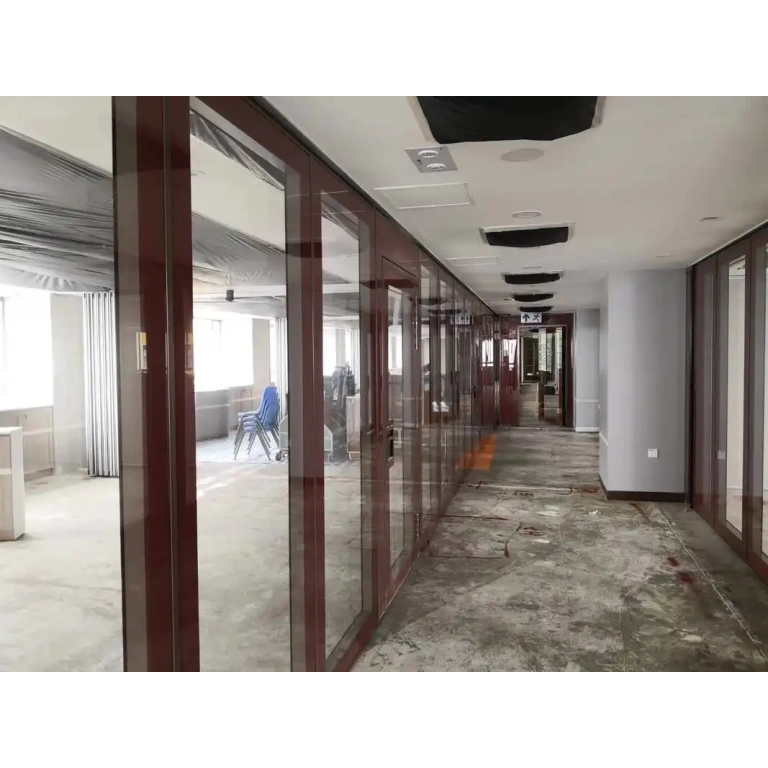

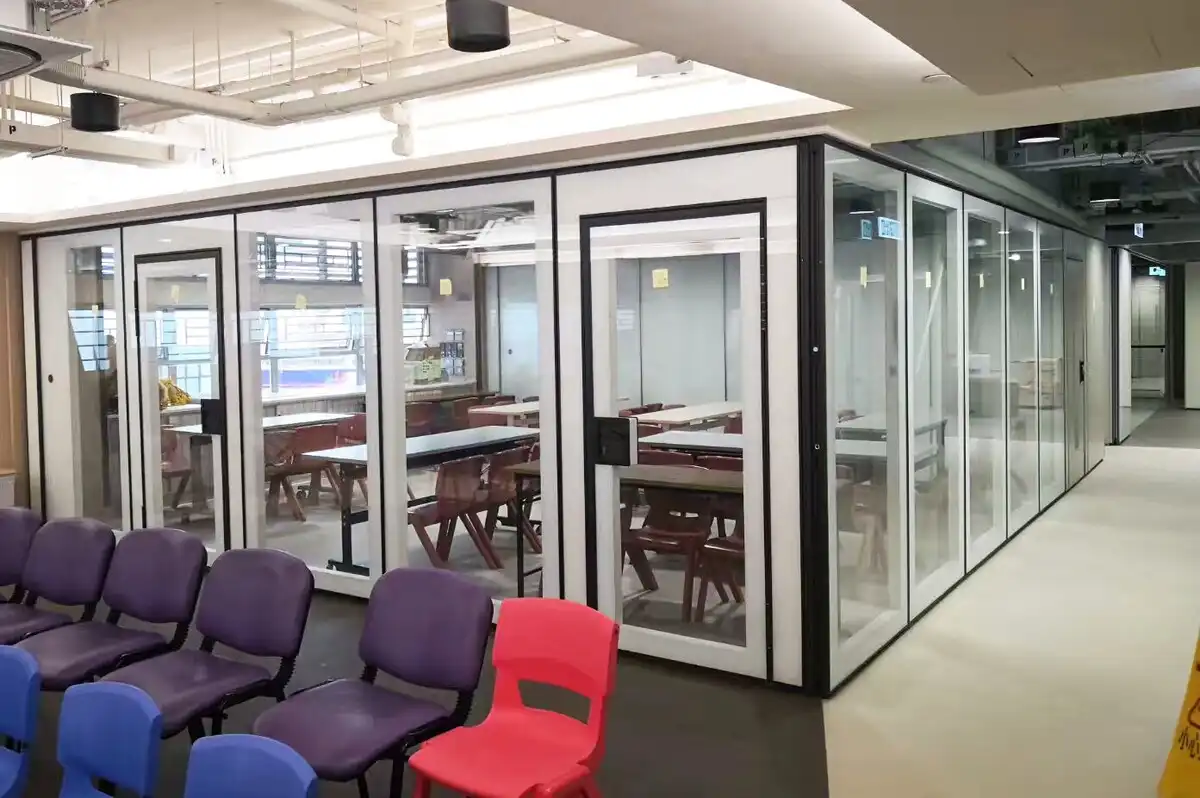

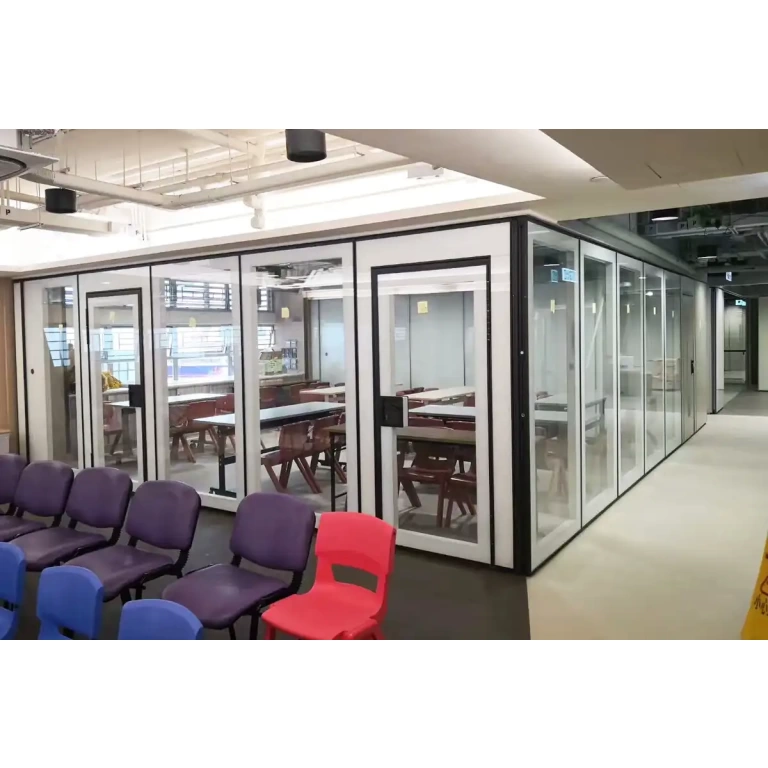

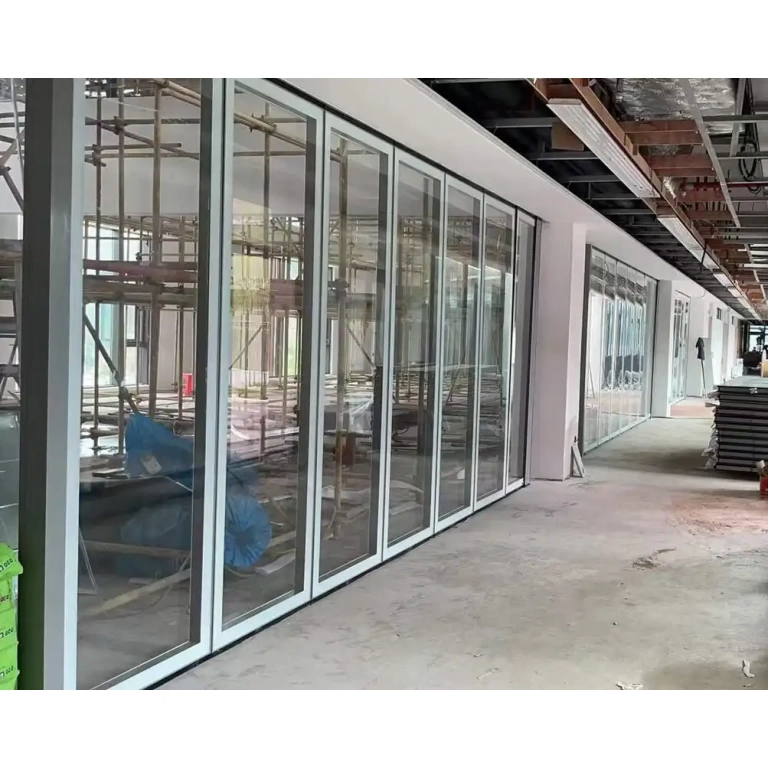

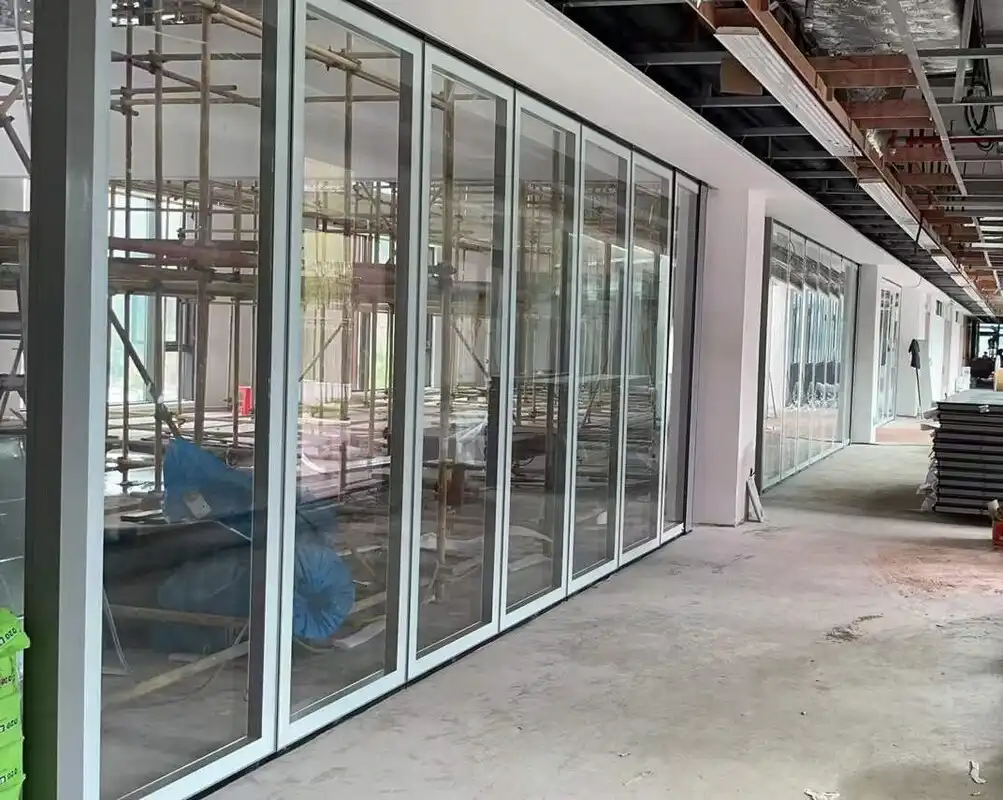

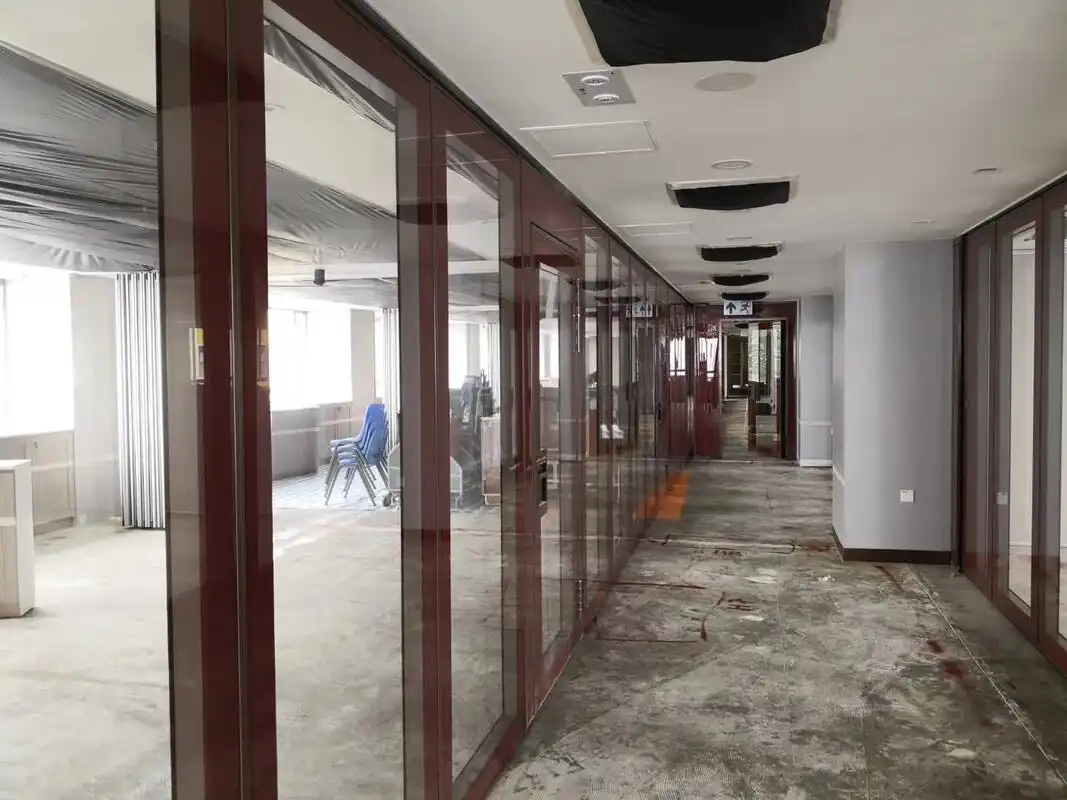

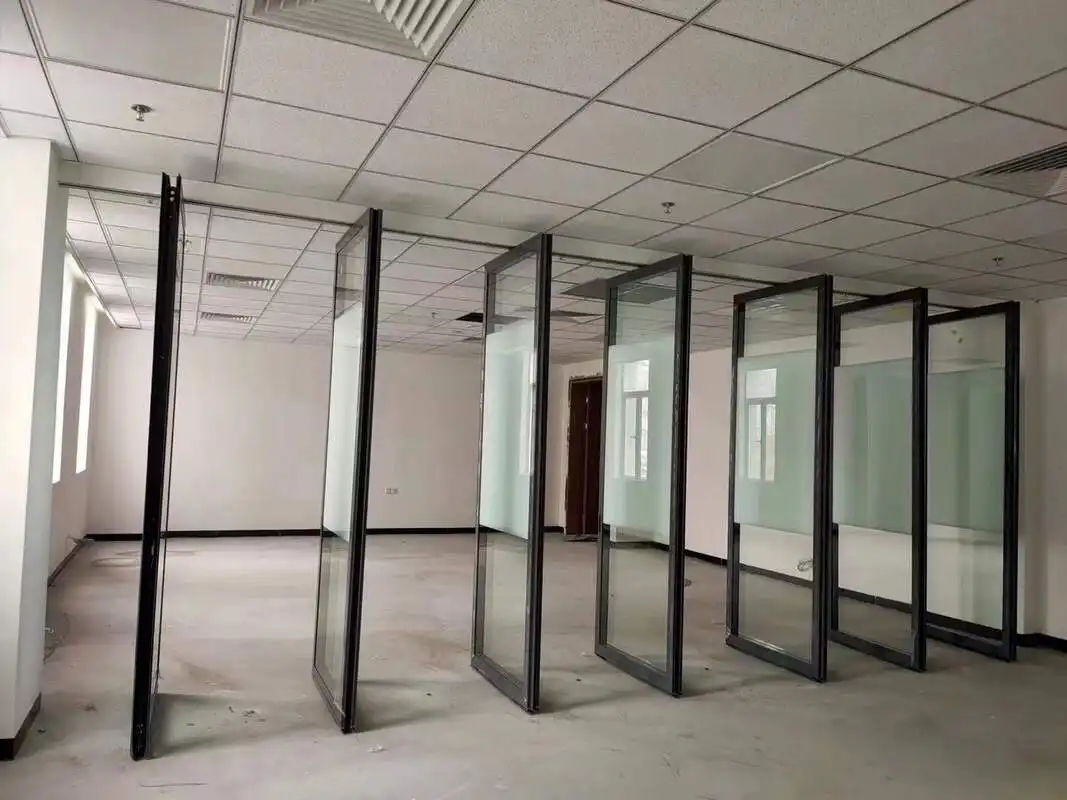

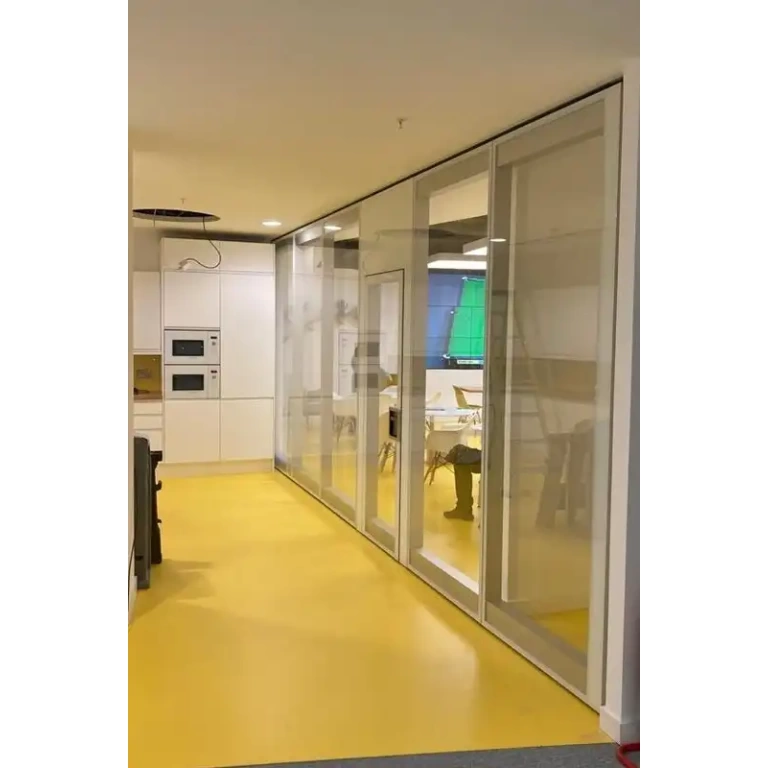

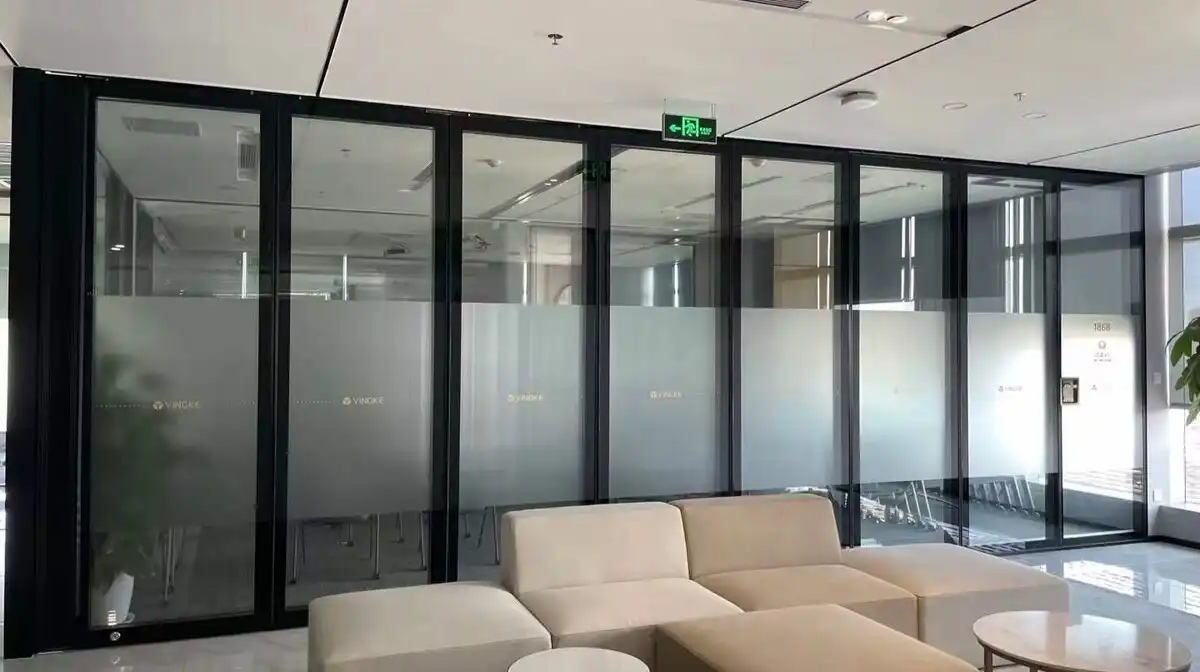

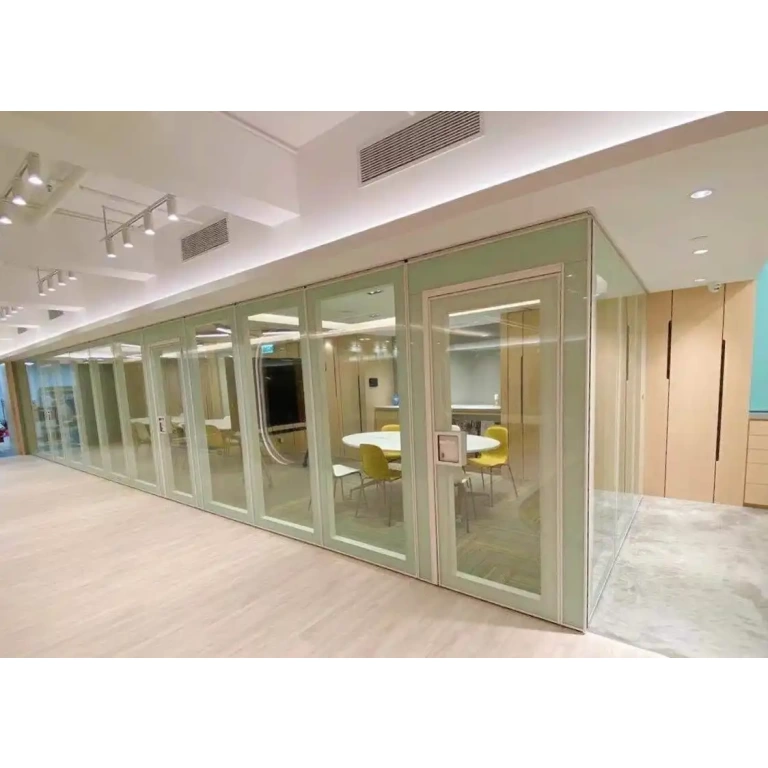

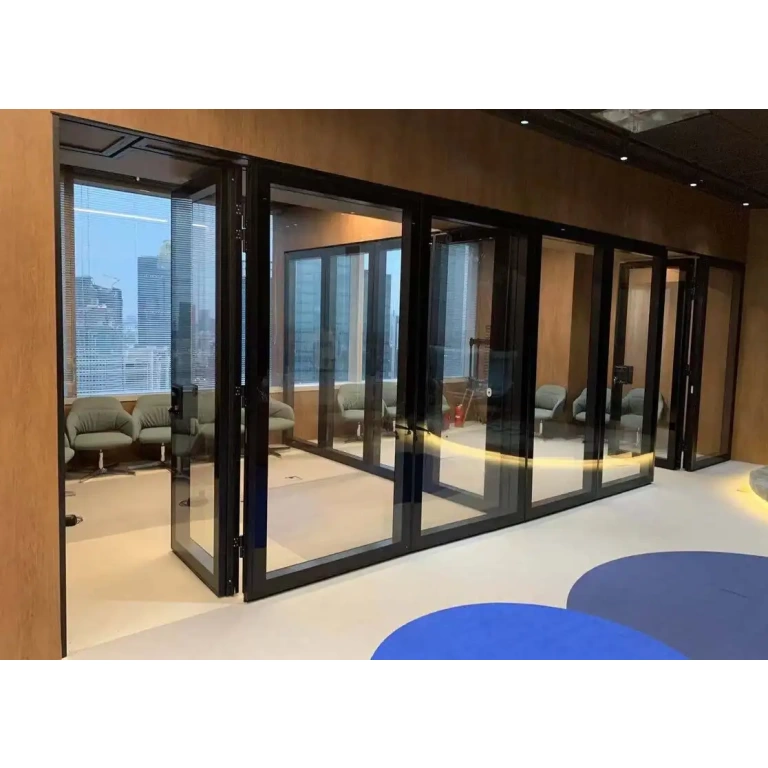

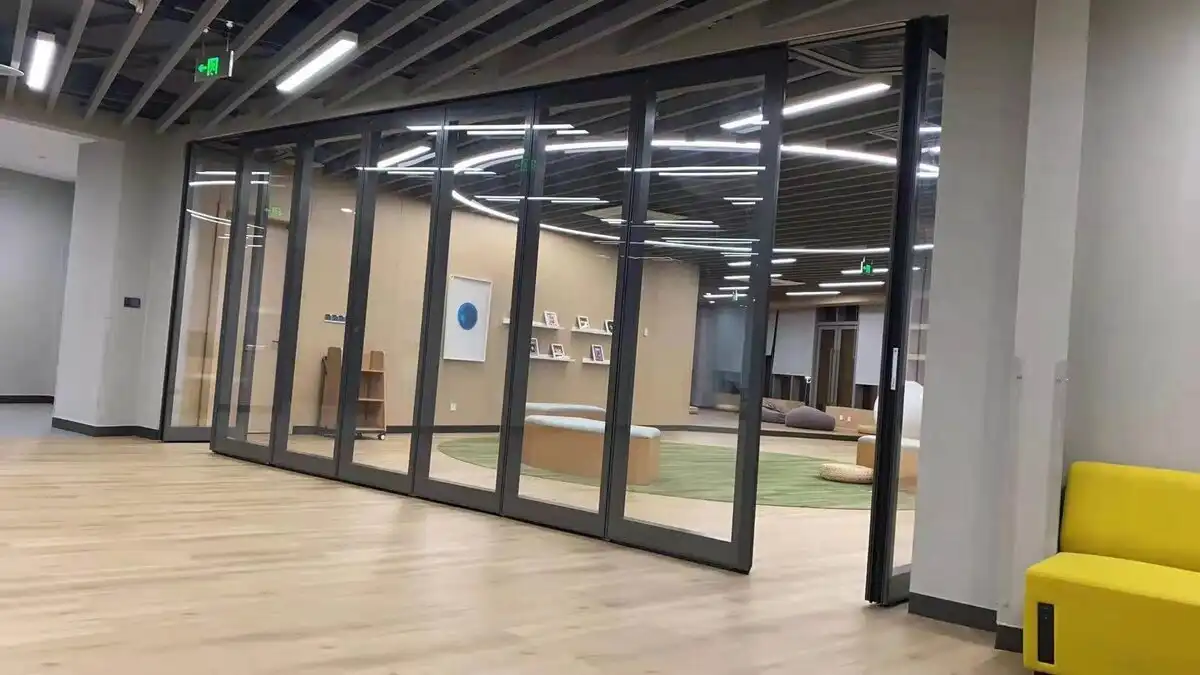

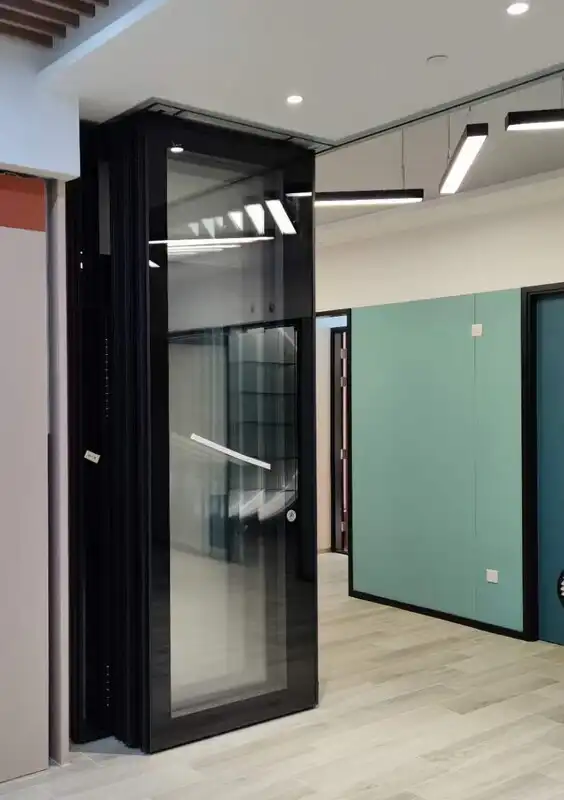

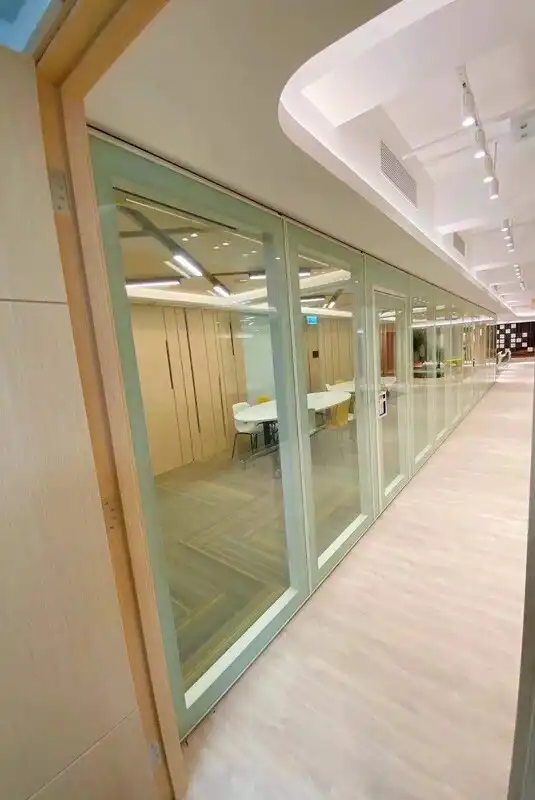

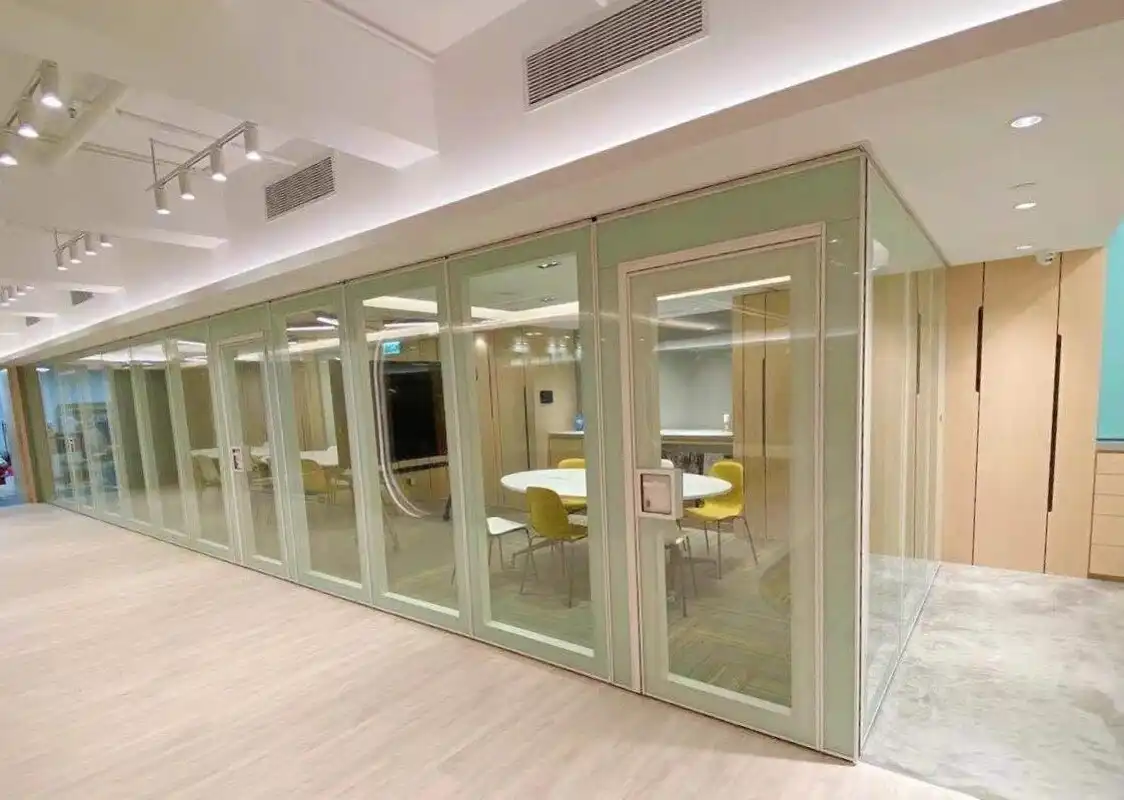

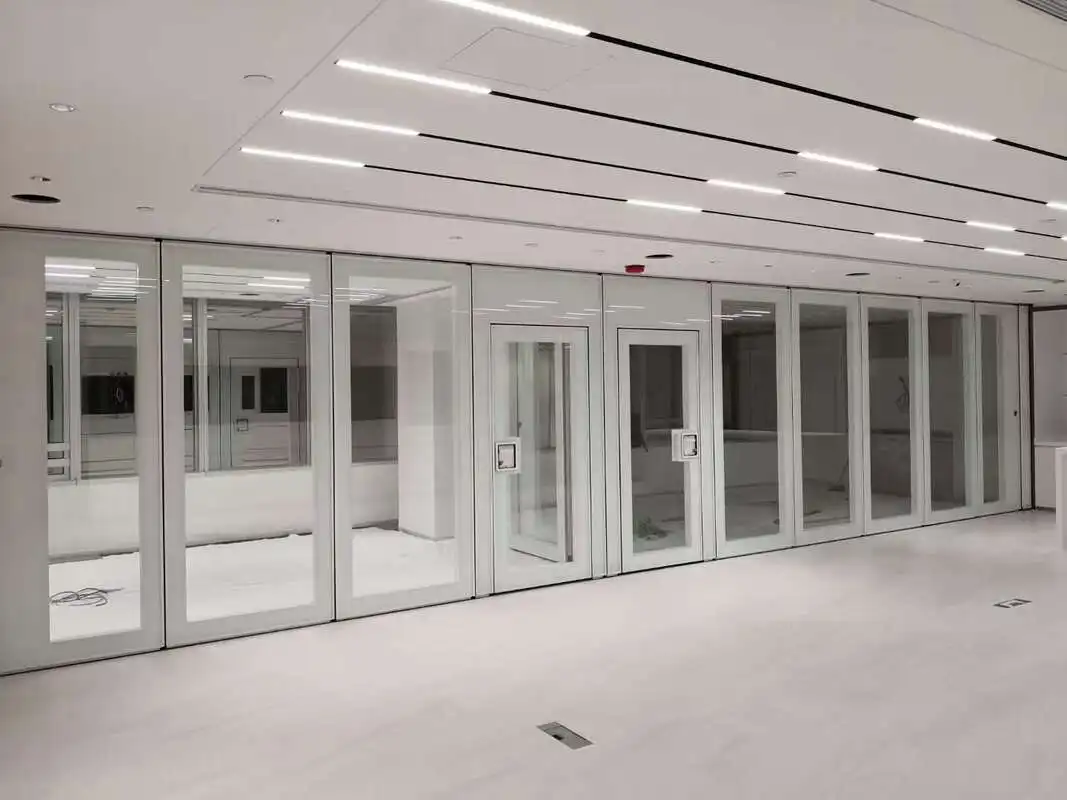

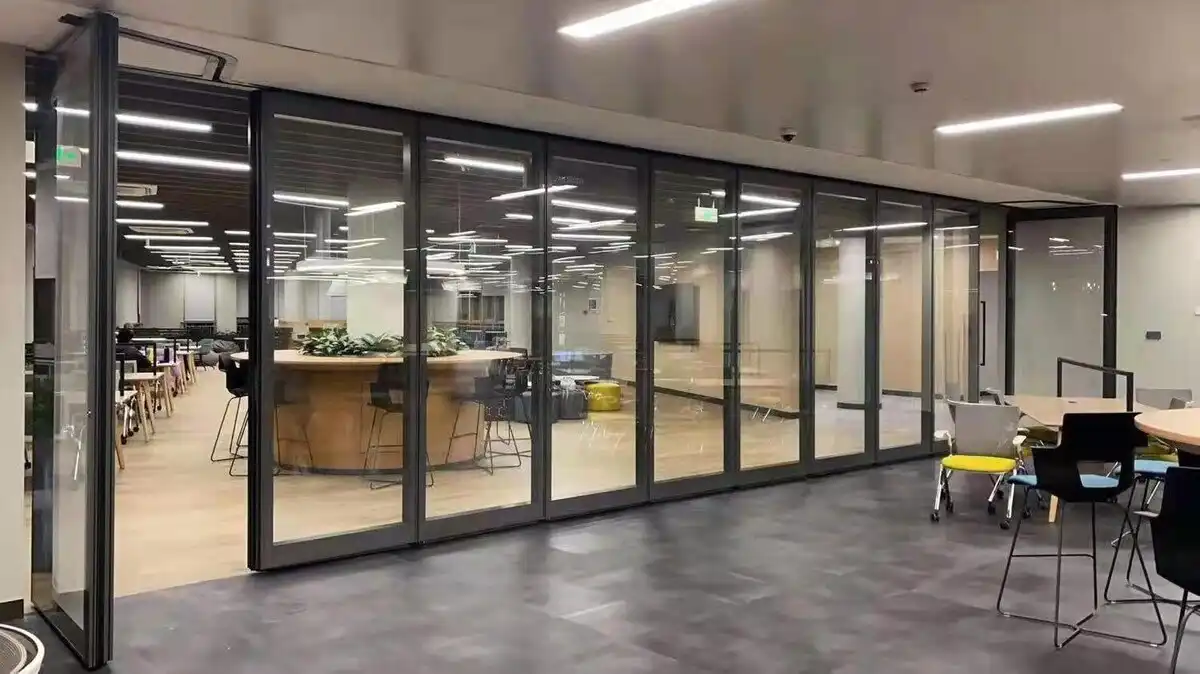

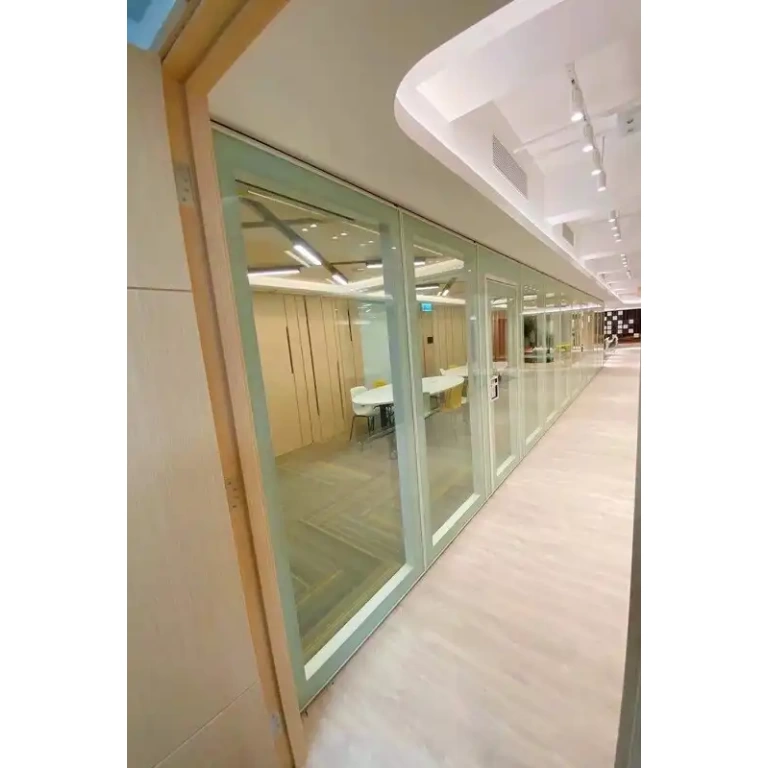

Introducing the EuroSound XD Series Double Glaze Glass Panel— crafted for transparency, functionality, and remarkable acoustic performance. This system integrates double-layered tempered glass within an aluminium frame structure providing an acoustic performance of STC 50.
With 85mm thick panels featuring 10mm tempered glass on both sides, this system suits walls up to 3.5 meters in height. The aluminium frame allows for customization with powder coating in multiple colour options.
Thickness: 85mm thick panels, 10mm tempered glass
Height: up to 4 meters
| Specification | Details |
|---|---|
| XD Track : | Anodised Aluminium 6063-T5; Top Hung System; maximum load 450kg per panel. |
| XD Roller : | Single Roller or Double Rollers; Material Polyoxymethylene (POM) with Stainless Steel 304 body and bearing 6304-2RS. |
| XD Seal : | Material Polyvinyl Chloride; Grey Colour |
| XD STC/DB : | 45 |
| XD Panel : | Thickness 85mm, Aluminium Frame with Interlocking joint , Double Glazed 10mm Tempered Glass / Laminate Glass |
| X4 Acoustic Seal : | 25mm Top and Bottom |
| Operation Mechanism : | Manual Car Jack System, Manual Half Crank System, Semi Automatic System or Fully Automatic System |
